SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,4 x USB 2.0,PS/2

Battery Included: no

Brand Name: MACHINIST

Certification: RoHS,CE

Chipset: C612

Chipset Manufacturer: Intel

Choice: yes

Form Factor: CeB,E-ATX

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 256GB

Memory channel: Four

Number Of Memory Slots: 8

Number of M.2: 2

Number of PCI: 5

Number of PCIe x 1: 2

Number of PCIe x 16: 2

Number of PCIe x 4: 0

Number of PCIe x 8: 1

Number of SATA Ports: 10

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,PWR_FAN Connector,USB 3.0 Connector,USB 2.0 Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: 6th Intel Core i5,Intel Others

Quality Certification: ce,ROHS

RAID Supported: no

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: SATA,M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR3

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Video Production,Mini PC,others

With CPU: No

Friends, please note: This motherboard has a DDR3 memory slot and only supports some processors (the processors currently tested only support E5 2629 V3, E5 2649 V3, E5 2669 V3, E5 2666 V3, E5 2673 V3, E5 2676 V3, E5 2678 V3, E5 2696 V3). After purchase, you know by default that you can only use these processors.

Package includes:

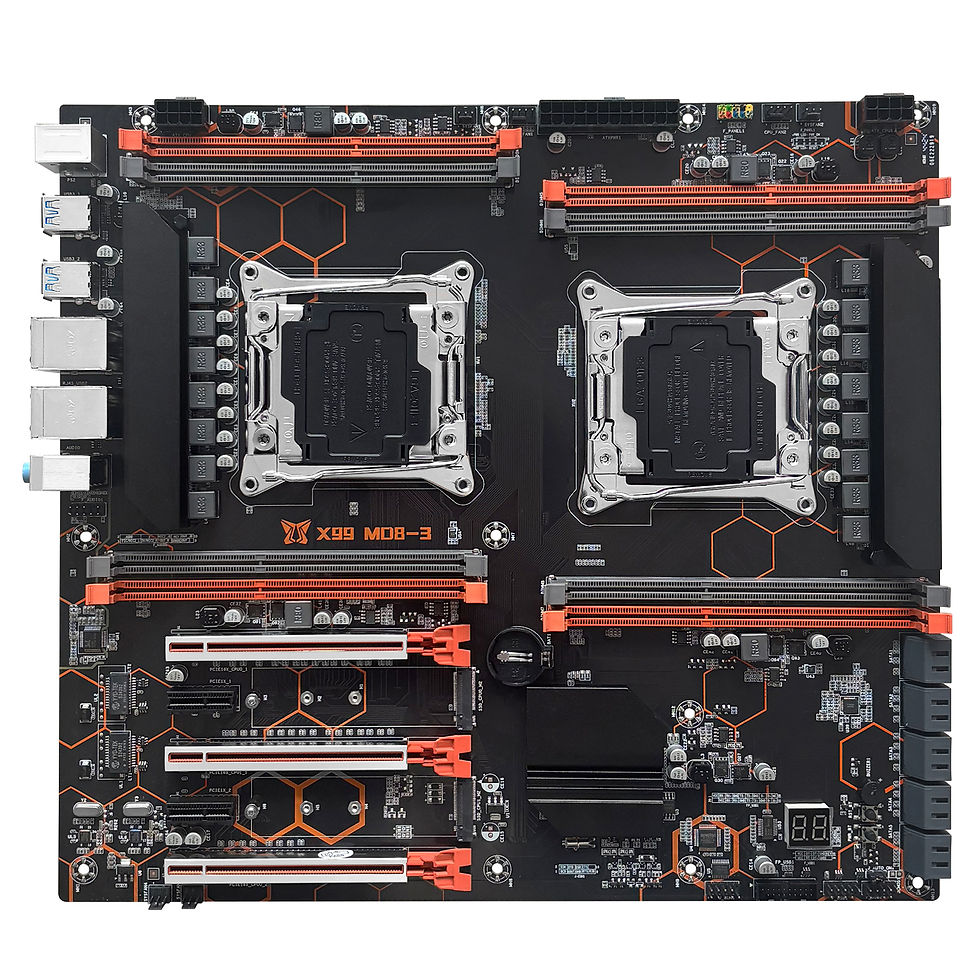

Motherboard: MACHINIST X99 MD8-3 2011-3 motherboard*1Pcs. Bonus accessories: I/O shield*1, SATA cable*1, lga 2011 heat sink*1. (The package is manually tested before sending. If any gifts are missing, it cannot be used as a reason for refund, please understand!) Motherboard information: Brand: MACHINIST. Motherboard model: X99 MD8-3. Processor: Support LGA 2011-3 series, dual processor interface. Chipset: C612 chipset. Memory technology: 8-channel DDR3. Support 2133/2400/2666/3000/3200 MHZ. Maximum capacity 256GB (32G x 8). Memory slot: 8 x 288 PIN DDR4. Note 1: Please use international brands such as Samsung, Kingston, Sandisk, Micron, etc. Other brands are not compatible. Others: PS/2: 1 KB interface + 1 MS interface, Ethernet: 2 Gigabit network cards, Diagnostic card: 1, USB interface: 4 USB2.0; 4 USB3.0, SATA interface: 10 (SATA3.0), M.2: 2 (NVMe/SATA switch), PCIe: 2 PCIe 16x, 2 PCIe 1x, 1 PCIe 8x, Size: 320mm*300mm.
